DNA origami with a twist
03 October 2010
Researchers in the US have designed and synthesised a nanoscale Möbius strip out of DNA origami.
A Möbius strip is a closed system with only one edge - one can be made by taking a strip of paper and giving it a half twist, then joining the two ends to form a loop. These kinds of structures are often found in nature, but making them via molecular engineering is a difficult process.
However, Hao Yan and Yan Liu and colleagues from Arizona State University were able to design a Möbius strip that could be made in just one single step using DNA origami. The technique involves taking one long piece of single stranded DNA, and 'stapling' it into the desired structure with shorter DNA lengths.
Left: The Möbius DNA strip. Middle: Each coloured band represents a different DNA double helix. Right: AFM images of Möbius DNA strips
© Nature Nanotechnology
The team's Möbius strip is formed of 11 parallel DNA helices, joined together by strands crossing from one helix to another. 'It's a one part reaction,' says Yan, 'because we have a scaffold strand, which is 7249 nucleotides long, and then just added small helper staple strands to fold it into a Möbius strip. Because of the design of the folding path, the staple strands pair off with the scaffold and naturally fold into this structure.'

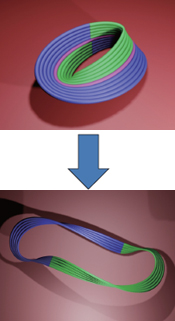

DNA kirigami to change the topology of the Möbius strip
© Nature Nanotechnology
Using the kirigami technique, Yan and Liu cut along the length of the Möbius strip in two different places, creating new topologies. For example, cutting along the centre of the strip resulted in a larger single loop containing two full twists. They also cut a third along the width of the original structure to create two interlocking rings. 'This gives us a totally new way to create topology and recreate topology without breaking the covalent linkage,' says Yan.
'A decade ago it would have been unthinkable that we would have a molecular analogue of paper that so easily made into a Möbius strip, or have a such close analogue of cutting,' says Paul Rothemund, of the California Institute of Technology, US, the creator of DNA origami. 'This work really stands out as a "mathematico-molecular delight" a celebration of what we humans have come to understand and to create.'
The team now hopes to create more complex topology, such as knotted structures, using the technique. They hope that in the future these structures could be used in molecular machines.
Interesting? Spread the word using the 'tools' menu on the left.
D Han et al, Nature Nanotechnology, 2010, DOI: 10.1038/nnano.2010.193
